26 inch kompact tree spade

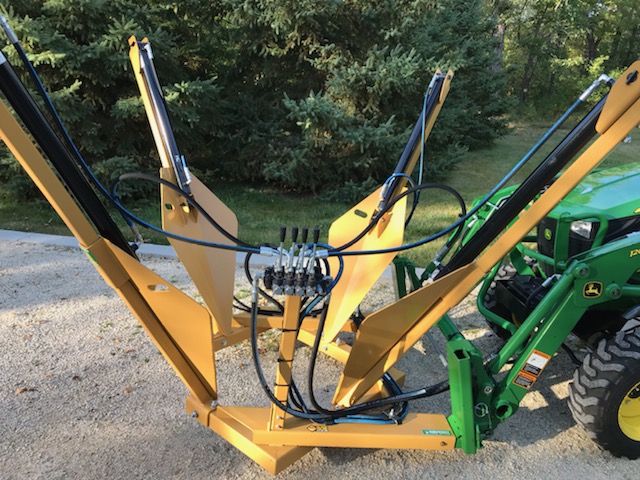

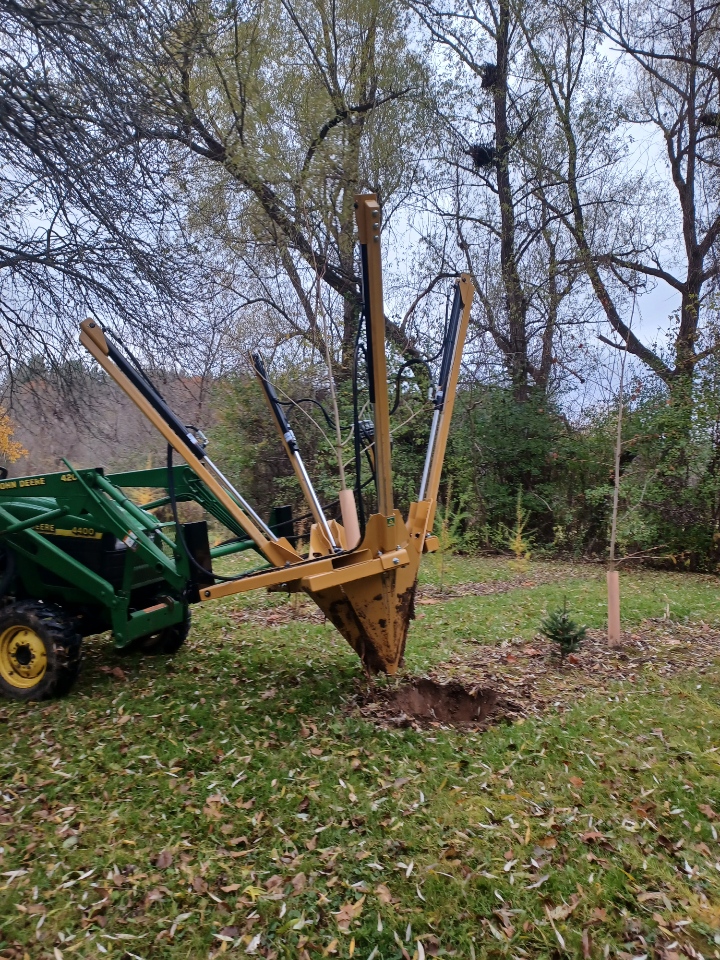

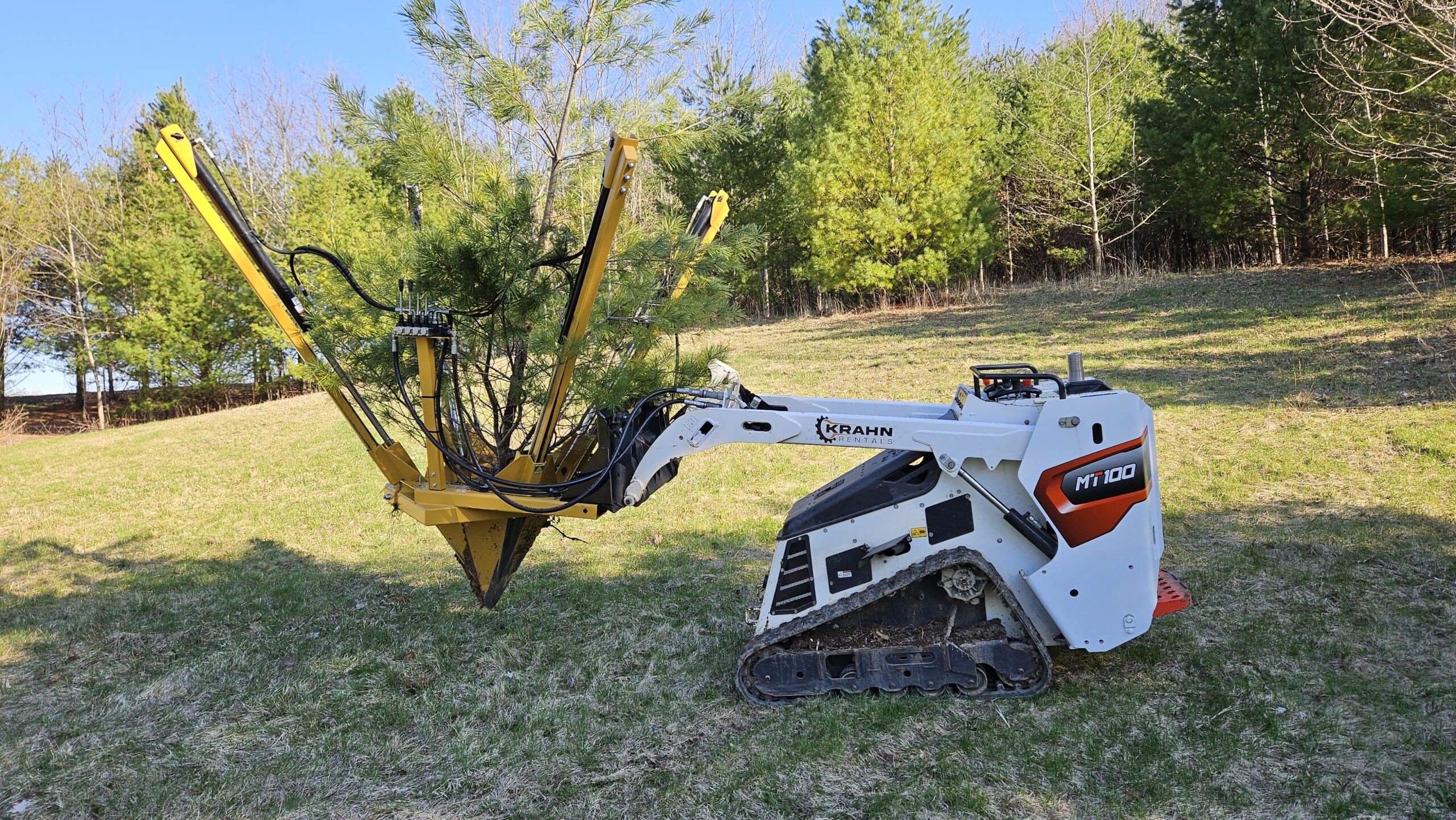

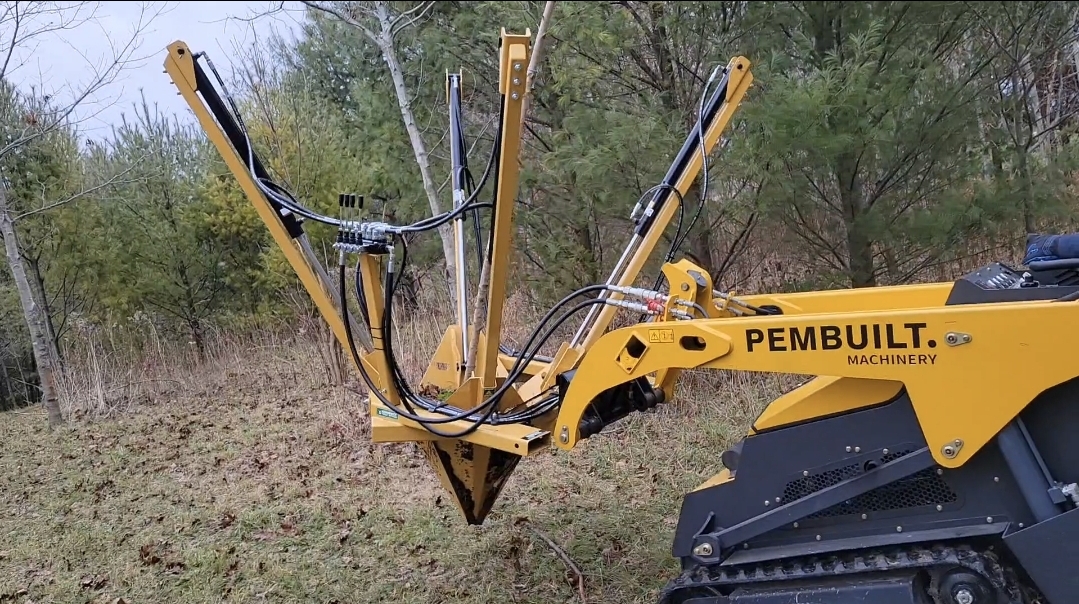

26″ Kompact Tree Spade


  • Root ball width 26″
  • Root ball depth 21″
  • Max diameter of tree is 2.5″ measured 6″ up from ground
  • Approximate weight of tree with root ball 200lbs
  • Machine weight 600lbs
  • Blades made from 3/16″ tempered steel
  • 2″ diameter cylinders with 30″ stroke
  • Assembled dimensions 65″ high, 75″ wide on top, base is 53″ wide by 45″
  • Fork pockets inside measurement: 2 1/8″ high, 6 1/8″ wide, center to center is 40″
  • #8 JIC hose ends to attach to supply fittings on value (supply hoses not included)
  • Approximately 10-15 litres of hydraulic oil needed
  • Any flow of hydraulic pump works on this machine
